Verilog Code for BCD to 7-segment Display #BCD_to_7-segment



Verilog Code for BCD to 7 Segment code Decoder:-

Binary Coded Decimal Numbers are counted from 0 to 9 represented like simple 4 bit binary as follows,

Decimal Number	BCD Number
0	0000
1	0001
2	0010
……	……
9	1001

Now, 7 segment is electronics device which consist of 7 LEDs for representing Numbers which we can see by our eyes. Below is circuit that shows how can we see BCD numbers in &-segment display.

 Below is Truth Table for BCD to 7-segment Display,

As per Above Truth table Following is Verilog code for BCD to 7-segment Display.

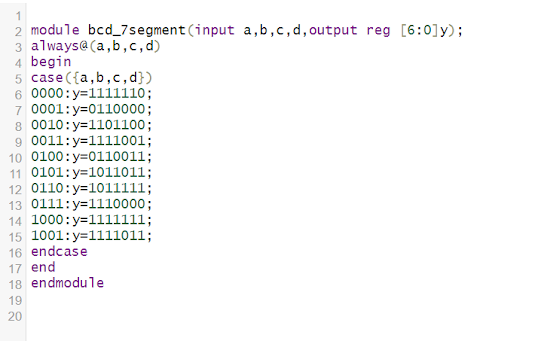

RTL :-

TB :-

• For simulation Please check following link of EDA Playground :-

          https://www.edaplayground.com/x/vw2Y
